Redline Sport + 4/5 Seater SWB/LWB Campervan

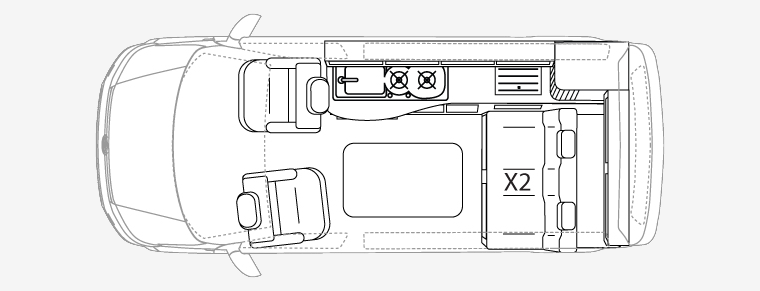

SWB Redline Sport + Layout

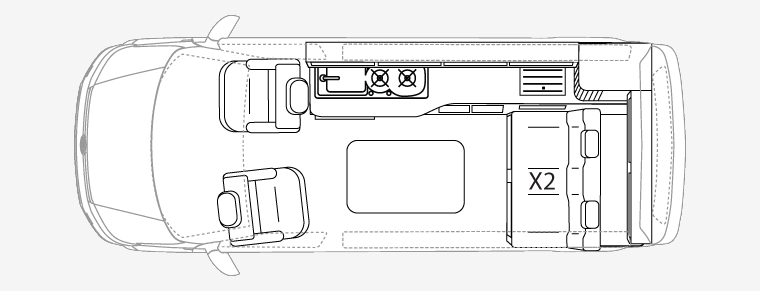

LWB Redline Sport + Layout

Key Redline Sport + features

Flush-fit cupboards
Van shades on all rear windows
Trackstar Thatcham S7 tracking system (including 1 year subscription)
Rear overhead storage lockers

Under counter colour changing remote controlled LED down lighting

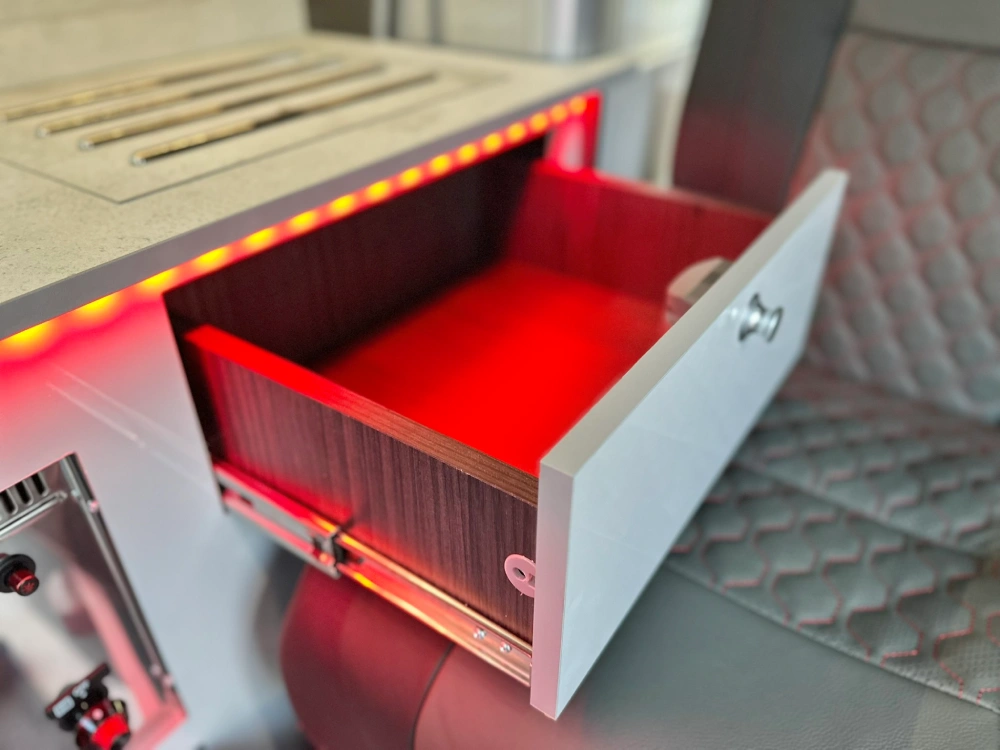

Worktop protector hot rods with drawer and locker underneath
Sliding door stored freestanding table
Curved tambour door to tall rear locker

About the Redline Sport + Campervan

If you’re looking for an upgraded version of our Redline Sport Campervan, the Redline Sport + Campervan will be for you.

Taking our Redline Sport Campervan and providing it with a number of premium upgrades, the Redline Sport + further enhances your camping experience. To do this, the Redline Sport + adds the following upgrades to an already impressive vehicle – Vanshades Window Pods, a Trackstar tracking system (complete with a 1-year subscription), overhead rear lockers, integrated colour-changing LED lighting, and a flush-fitting locker door.

Available on SWB and LWB VW Transporter and Ford Transit Custom platforms

Like the Redline Sport, the Redline Sport + campervan is available on both the VW Transporter T6/T6.1 and Ford Transit Custom platforms, and is available on a choice of a short wheelbase (SWB) or long wheelbase (LWB) vehicle.

Equipped with seating and sleeping space for four people, the Redline Sport+ is a superb choice for small families or groups looking for a comfortable base for their adventures in the great outdoors.

Discover home-from-home comforts

As a premium campervan conversion, the Redline Sport + brings with it all kinds of home-from-home comforts which allow you to eat, sleep and travel in total luxury. These home-from-home comforts include a Dometic gas grill, a Dometic two burner gas hob, a Dometic fridge with freezer compartment, and a comfortable RIB Altair bed. Whilst to ensure you are able to travel with everything you need for a comfortable camping trip, the Redline Sport features ample storage space.

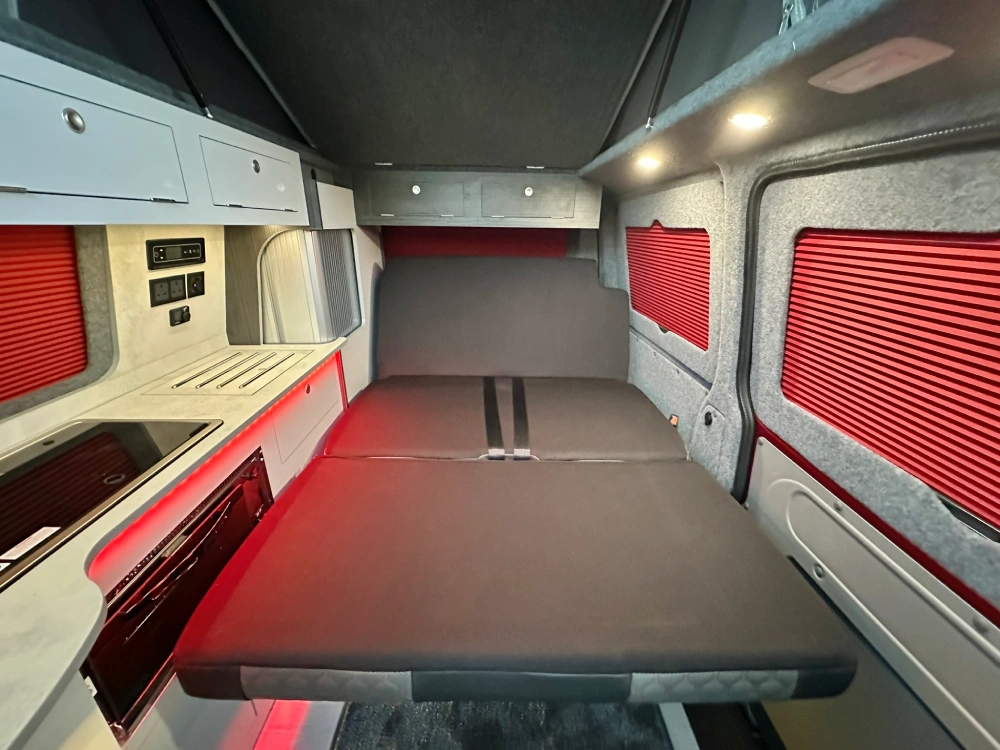

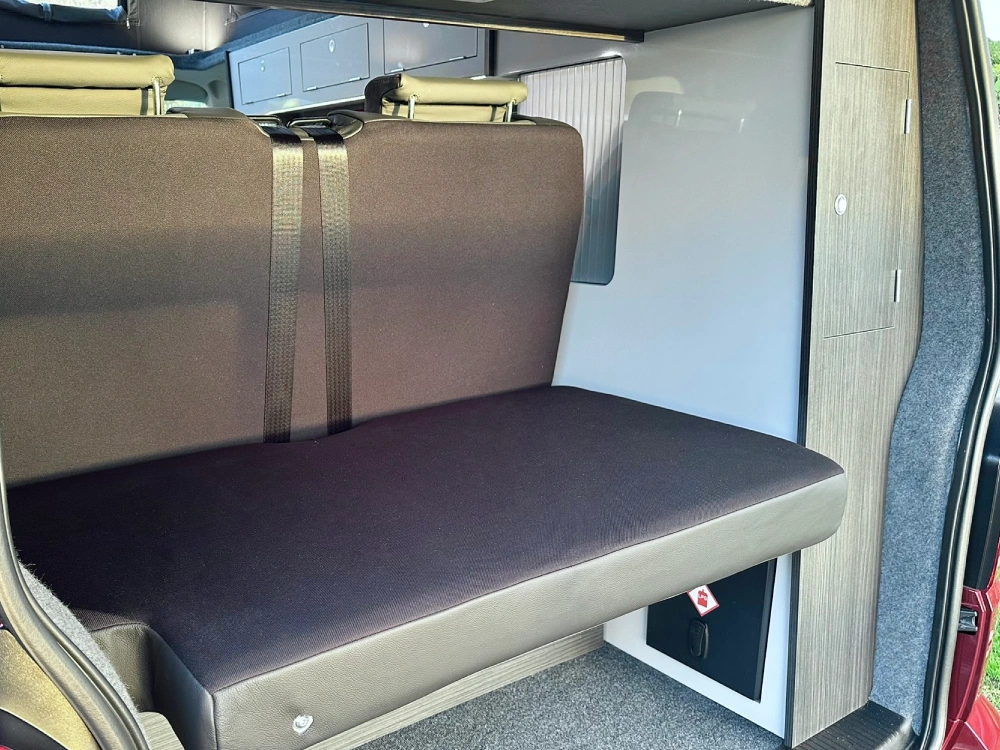

Chassis mounted with an M1 tested fixing bracket, the RIB Altair 112 bed fitted to the Redline Sport + has TUV and European approvals, and is has an injection moulded foam filling for comfort whilst travelling and sleeping. This comfort is enhanced as with a RIB bed, you sit on the front and sleep on the back, which makes for a more comfortable sleep and ensures one side of the bed isn’t subjected to constant wear. Whilst multiple back rest positions allow you to sit up in bed. This also provides multiple options for the seats/bed as opposed to just laying flat and sitting upright.

A great choice for families

An ideal choice if you have young children, the Redline Sport comes with ISOFIX as standard.

Made for all-season use, this campervan comes fully insulated and features mesh ventilation panels to the roof tent for those warmer days.

As standard, the Redline Sport offers a 25 metre mains lead, cab, living area and step carpets, elasticated roof bellow straps, an additional rear view mirror and a sliding table with stowage point.

All Redline Sport + campervan conversions are built to BS EN 1646:2018 standards, have habitation ventilation compliant with BS EN 721:2019, and feature an LPG system compliant with BS EN 1949:2021 standards and with a manufacturers declaration for a new installation.

Discover the Redline Sport + Campervan (WATCH)

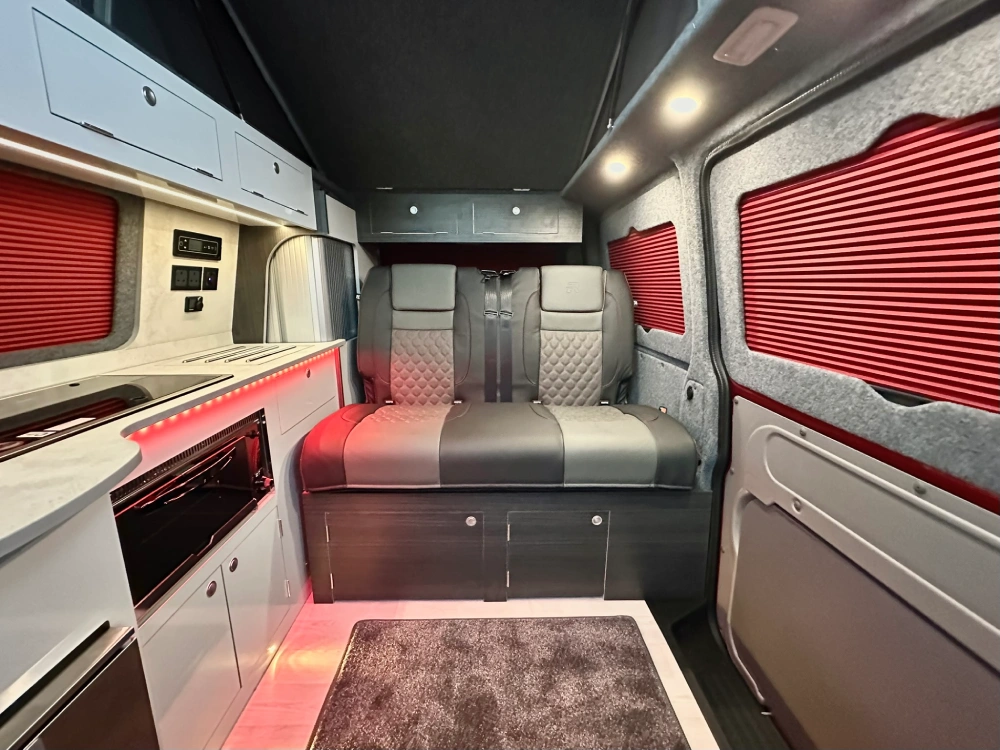

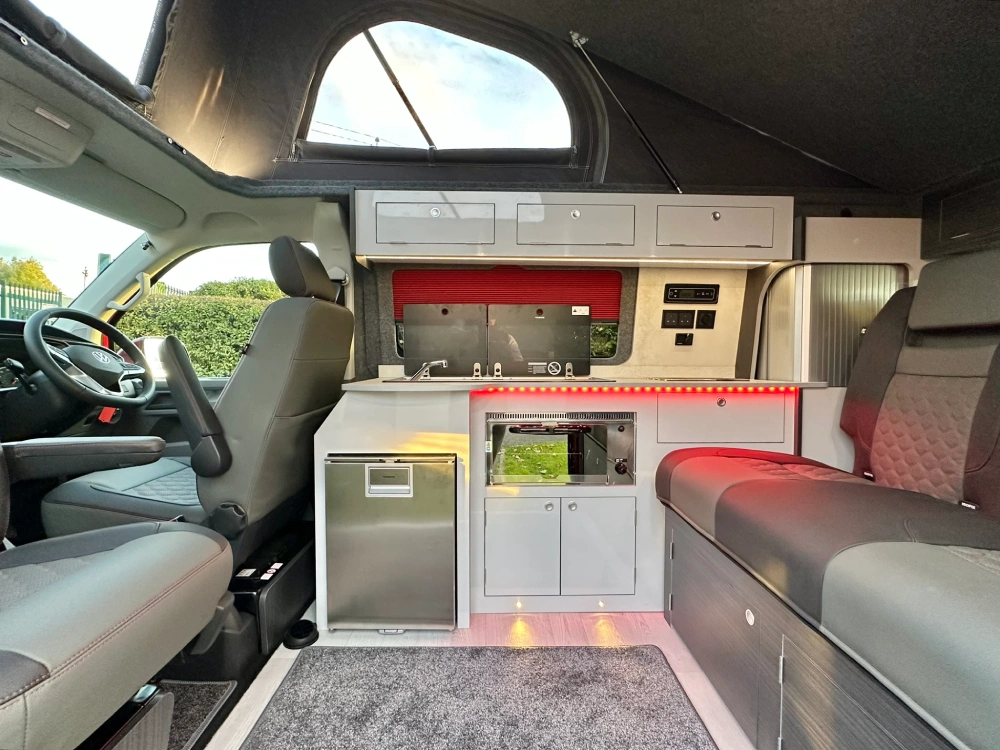

Redline Sport + image gallery

Please note: Leather seats are an optional extra.

Redline Sport + Campervan Specification

Construction

Thermo-Shield© construction with 8mm foil back foam and 25mm Dacron insulation
Redline® elevating roof with aerodynamic noise reducing spoiler & twin polycarbonate panel
construction

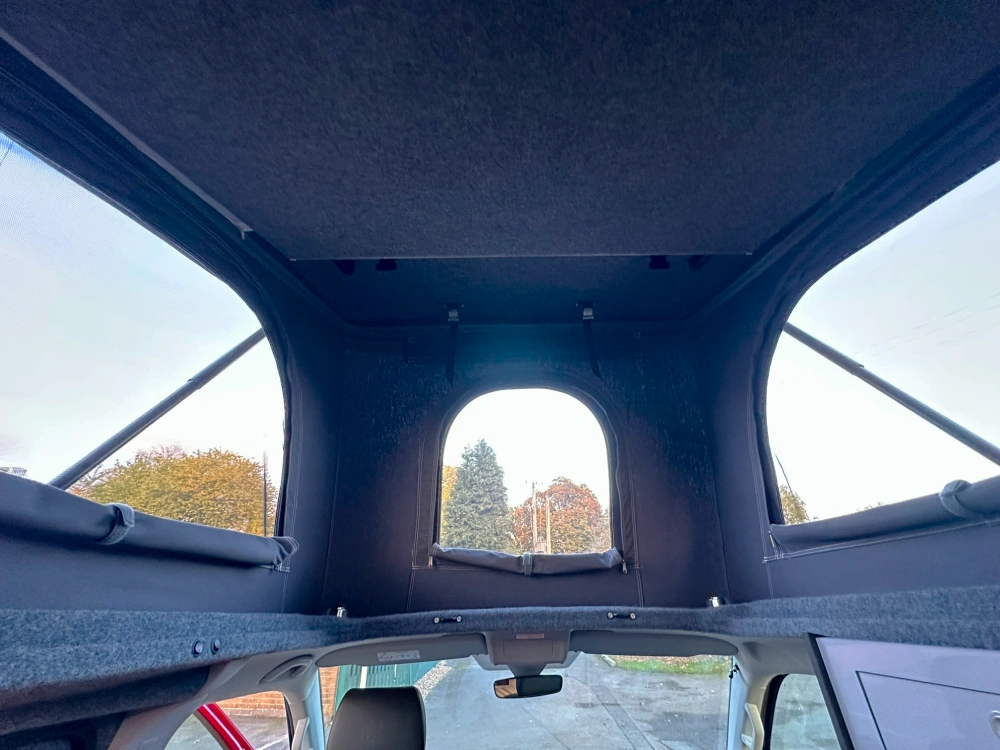

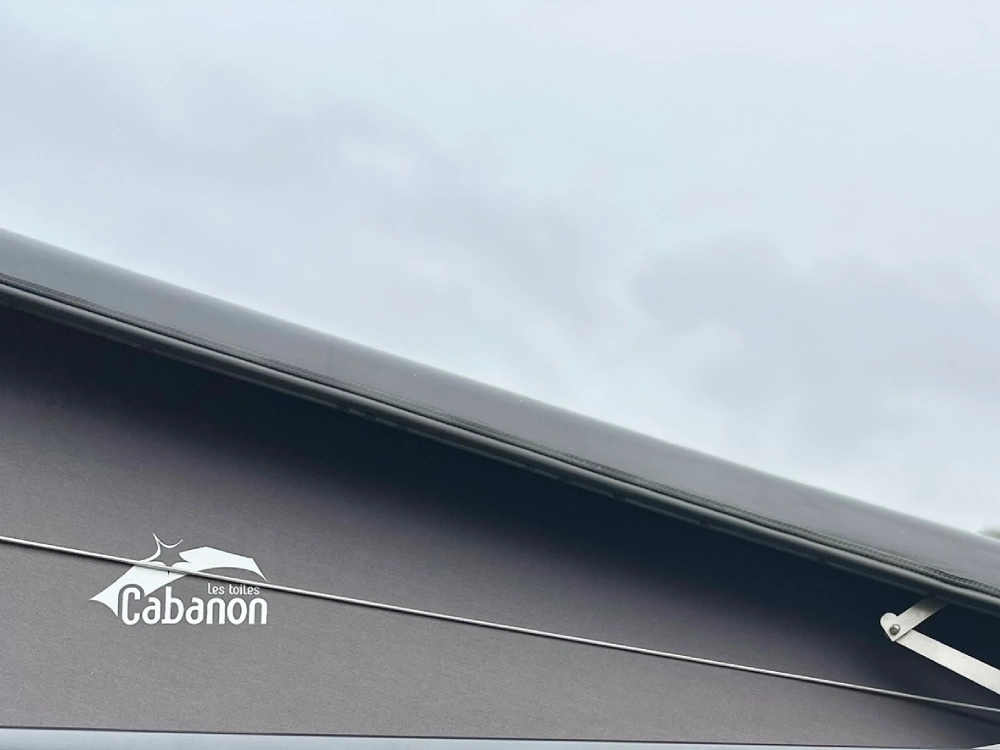

Premium handcrafted Cabanon roof tent with twin mesh ventilation windows and large front window
Stainless Steel high-lift hinges on elevating roof
Automotive quality lining (with built in access panels)
Genuine VW interior panel fixings
Stainless steel high-lift hinges
Fully glazed habitation area with heat insulating, privacy glass
Two flush-fit sliding windows in habitation area (2025 onwards)
Van shades on habitation windows
Precision CNC machined furniture with cam and dowel construction
Individually lined storage lockers
Worktop protector hot rods with drawer and locker underneath
Furniture edge banding
New ‘deep fit’ side entry step and rear door threshold

Seating/Beds

Tested twin seat swivel with integrated storage
RIB Altair 112 ISOFIX seating and bedding system with an M1 certified fitting kit (2-seater)
Pull-down upholstered double roof bed with memory foam mattress and safety net
RIB passenger seat swivel (Mobiframe, if double)

Optional upgrades:

Tested swivel on driver’s seat (when specified with a single passenger seat)
Single passenger seat (available with optional lockable safe)

Kitchen and Dining Facilities

Dometic® 12V fridge including internal freezer compartment

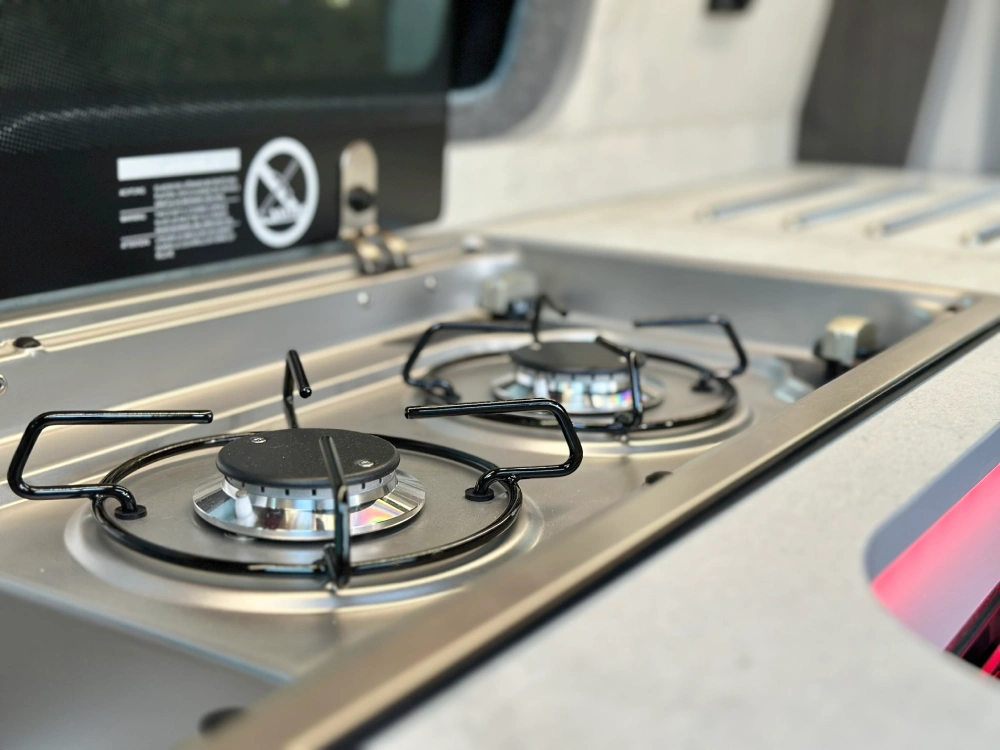

Dometic® two-burner gas hob and sink
Dometic® gas grill
45L onboard fresh water tank (with external filling point)
23L waste water tank
Sliding door stored freestanding table

Optional upgrades:

Sliding table with two premium attachment rails

Electrical

Bespoke power management system and wiring loom, compliant with BS EN 1648
Leisure battery and engine battery charging facilities
100Ah AGM leisure battery
BCA Seattle digital control panel
Wireless charging point
6 x USB charging points
2 x 230V mains sockets
External 230V mains inlet
Sterling battery-to-battery charger
1-touch dimmable LED lighting
LED strip lighting on lockers above kitchen
Under counter colour changing remote controlled LED down lighting
Floor level LED lighting
Elevating roof up lighting
Pre-wired for solar panels (optional extra)
Pre-wired for Fiamma LED awning light (optional extra)
Carbon monoxide alarm
Trackstar Thatcham S7 tracking system (including 1 year subscription)

Optional upgrades:

3 year LeisureTrac Thatcham C7 tracking system subscription

Accessories

907 Camping Gaz cylinder
25-metre mains lead
Carpet set (in platinum twist)
Tailored habitation carpet (in platinum twist)
Elasticated roof bellows strap
Step
23L waste water container

Vehicle Preparation

Built to BS EN 1646:2018 standards
LPG system compliant with BS EN 1949:2021 including a manufacturer’s declaration for new
installation
Habitation ventilation compliant with BS EN 721:2019
Full pre-delivery inspection
36-month conversion warranty
Balance of the manufacturer’s base vehicle warranty or a 12-month insurance backed warranty
Fully serviced and prepared to Volkswagen’s maintenance schedule using genuine Volkswagen parts
Cambelt and water pump changed (where required, using genuine Volkswagen parts)
MOT (where required)
Bespoke Redline graphics
